Why Aluminum & Titanium Chambers Support Quantum Computing So Well

Mel Janecka • July 10, 2026

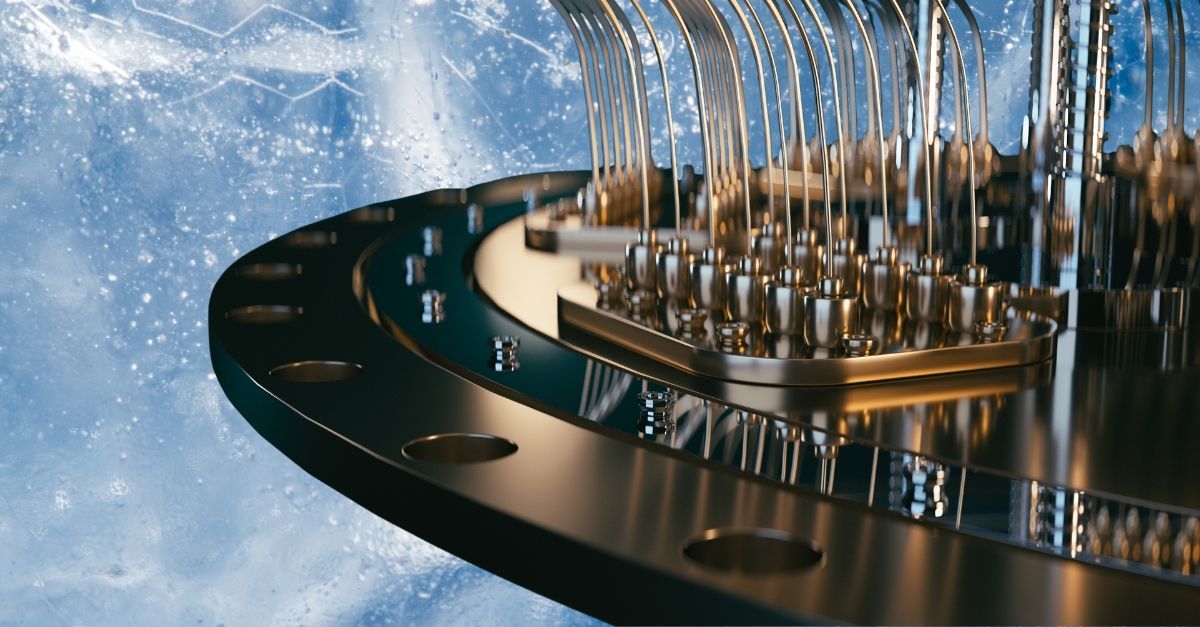

Ultra-high vacuum (UHV) and extreme high vacuum (XHV) chambers provide the pristine cryogenic environment necessary for qubit stability.

The Rise of Quantum Computing

Quantum computing is revolutionizing fields like materials design, space exploration, drug discovery, climate modeling, and financial optimization. Institutions like the Cleveland Clinic and IBM already operate dedicated quantum computing sections in their data centers. Cloud access to quantum processing power is expanding rapidly. And quantum sensing devices capable of detecting subterranean water tables and mineral deposits from space are in prototype stage.



Why High-Performance Vacuum Is Non-Negotiable in Quantum

A quantum computer exists in a layered architecture known as the quantum stack which includes the quantum processing layer, the cryogenic layer, the control electronics layer, and the infrastructure layer. Because qubits exist in fragile quantum states that decohere when they interact with gas molecules, electromagnetic interference, thermal noise, or vibration, vacuum technology is foundational to every tier of the stack.



Superior Vacuum Performance at UHV and XHV Levels

Because any flaw in the system will break its ability to function, quantum engineers build incredibly robust testing and control mechanisms. Thus they have a huge and ongoing need for UHV or XHV chambers. Aluminum and titanium are especially well equipped to maintain the necessary purity and vacuum status.



Aluminum and titanium vacuum chambers consistently achieve one to two orders of magnitude higher vacuum than stainless steel systems. This performance advantage is primarily driven by their significantly lower hydrogen content and hydrogen outgassing rates. The result is:

  • Faster vacuum pump-down
  • Lower ultimate pressures
  • Reduced long-term outgassing
  • Lower bake out temperatures and time particularly for aluminum
  • Aluminum bakes evenly to achieve more thorough bake out
  • Titanium may be ultra baked at very high temperatures

For quantum computing systems, where coherence times are directly impacted by environmental interactions, cleaner (higher) vacuum translates to reduced qubit decoherence and greater operational stability.


Reduced Magnetic Noise

Both aluminum and titanium are nonmagnetic, providing a critical advantage in quantum computing environments. Stainless steel can exhibit residual ferromagnetism, magnetic permeability variations, and field distortion due to mechanical forming or welding. These effects can compress, steer, or locally distort magnetic fields, introducing unwanted magnetic noise that interferes with qubit operation and coherence. Aluminum and titanium do not distort applied magnetic fields, thus minimizing  magnetic noise near sensitive qubit structures. This magnetic neutrality is especially important for superconducting, spin-based, and hybrid qubit architectures.



Optimized Thermal Properties

Thermal management is one of the most critical challenges in quantum computing systems, particularly at cryogenic and millikelvin temperatures. Aluminum's thermal conductivity makes it ideal for rapid thermalization and efficient heat sinking in cryogenic assemblies. Titanium provides controlled thermal isolation where limiting heat conduction paths is necessary. Together, they enable precision thermal engineering in complex quantum systems.



Aluminum offers high thermal conductivity for efficient heat extraction: Aluminum exhibits exceptionally high thermal conductivity – approximately 160–190 W/m·K at room temperature versus  ~14 W/m·K for stainless steel. Even though thermal conductivity decreases for most metals at cryogenic temperatures, the relative advantage of aluminum is generally preserved at cryogenic temperatures.


Aluminum has more predictable thermal distortion: Due to aluminum’s high thermal conductivity, systems distort less than stainless when exposed to temperature change. Even though aluminum has a higher coefficient of thermal expansion, heat is more evenly distributed in aluminum than stainless steel, resulting in greater dimensional stability.


Titanium – best for controlled thermal isolation: Titanium has a thermal conductivity of approximately 21.9 W/m·K, making it ~50% more conductive than stainless steel and significantly less conductive than aluminum. This makes titanium an excellent material for controlled thermal isolation, allowing designers to limit unwanted heat conduction paths, maintain thermal gradients, and mechanically support structures without excessive heat leakage. This property is especially useful in systems where different components must be maintained at different temperatures simultaneously, with minimal thermal cross-talk between stages.


Titanium provides excellent stability for feedthroughs: Titanium's dimensional stability under thermal cycling is equally important. Its relatively low thermal expansion coefficient makes it ideal for electrical feedthroughs and optical access ports where ceramic-sealed junctions must survive repeated temperature cycles from ambient to cryogenic without developing leaks. These feedthrough configurations are critical in quantum systems as they carry microwave control signals, DC bias lines, fiber-optic connections, and other services into the vacuum environment while maintaining hermetic seal integrity across thousands of thermal cycles.



Radiative Heat Suppression Using Aluminum Cryostats

Aluminum’s low thermal emissivity provides another major advantage for cryogenic systems. As a “white metal,” aluminum is inefficient at radiating and/or absorbing heat. This property can be exploited in aluminum cryostats that incorporate nested, polished aluminum radiation shields, arranged concentrically like Russian dolls. These interlayers dramatically suppress radiative heat transfer from ambient environments into cryogenic regions.

To further enhance performance, Atlas Technologies has developed a proprietary UHV-compatible aluminum polishing process known as Emissivac™ surfacing. The resulting highly polished surfaces minimize emissivity and serve as highly effective radiant heat shields in quantum computing systems.


Reduced Mass with Increased Mechanical Stability

Both aluminum and titanium are significantly lighter than stainless steel, reducing the overall weight and mass of quantum computing systems. This offers several system-level benefits:



  • Reduced mechanical loading
  • Easier handling and installation
  • Lower vibrational energy storage



Combining the Advantages of Multiple Metals

In practice, Atlas Technologies quantum customers often combine aluminum and titanium strategically within a single system – aluminum for the main chamber body and radiation shielding, titanium for flanges and feedthroughs. Bimetal transitions allow these dissimilar materials to be joined hermetically, enabling system designers to deploy each material where it performs best.



Why Aluminum & Titanium Chambers Support Quantum Computing So Well

  • Cleaner vacuum environments
  • Lower hydrogen and hydrogen-based outgassing
  • Magnetic neutrality
  • Superior thermal management
  • Reduced vibration and mechanical noise
  • Lightweight, scalable system architectures


Ultimately, better vacuum and thermal stability lead directly to reduced contamination, longer coherence times, and more reliable quantum operation, making aluminum and titanium vacuum systems foundational technologies for next-generation quantum computing platforms.



As quantum computing becomes mainstream, the demand for cleanly fabricated, thermally precise, and magnetically neutral vacuum chambers will grow substantially. Atlas specializes in aluminum and titanium vacuum systems with bimetal transitions, delivering both custom and production vacuum chambers for the quantum computing industry. And we have direct experience supporting trapped-ion systems, gravity sensing instruments, cryostat assemblies, photonic platforms, and emerging commercial quantum architectures.

A close up of a red laser beam on a dark background.

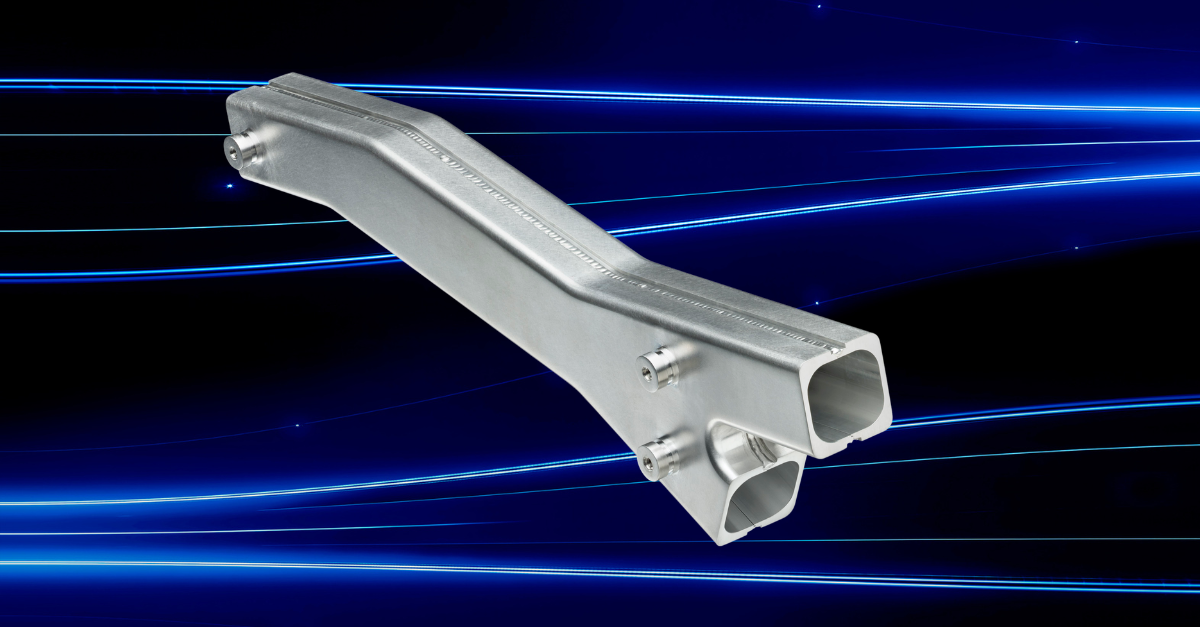

Fermilab Electron Beam Y-Chamber Solution
