Titanium Vacuum Chambers

Atlas Technologies is the world leader in titanium vacuum chamber engineering and manufacturing. With 30 years of experience in cutting-edge vacuum product design, we pride ourselves in providing the most advanced UHV and XHV titanium chamber technology and components.

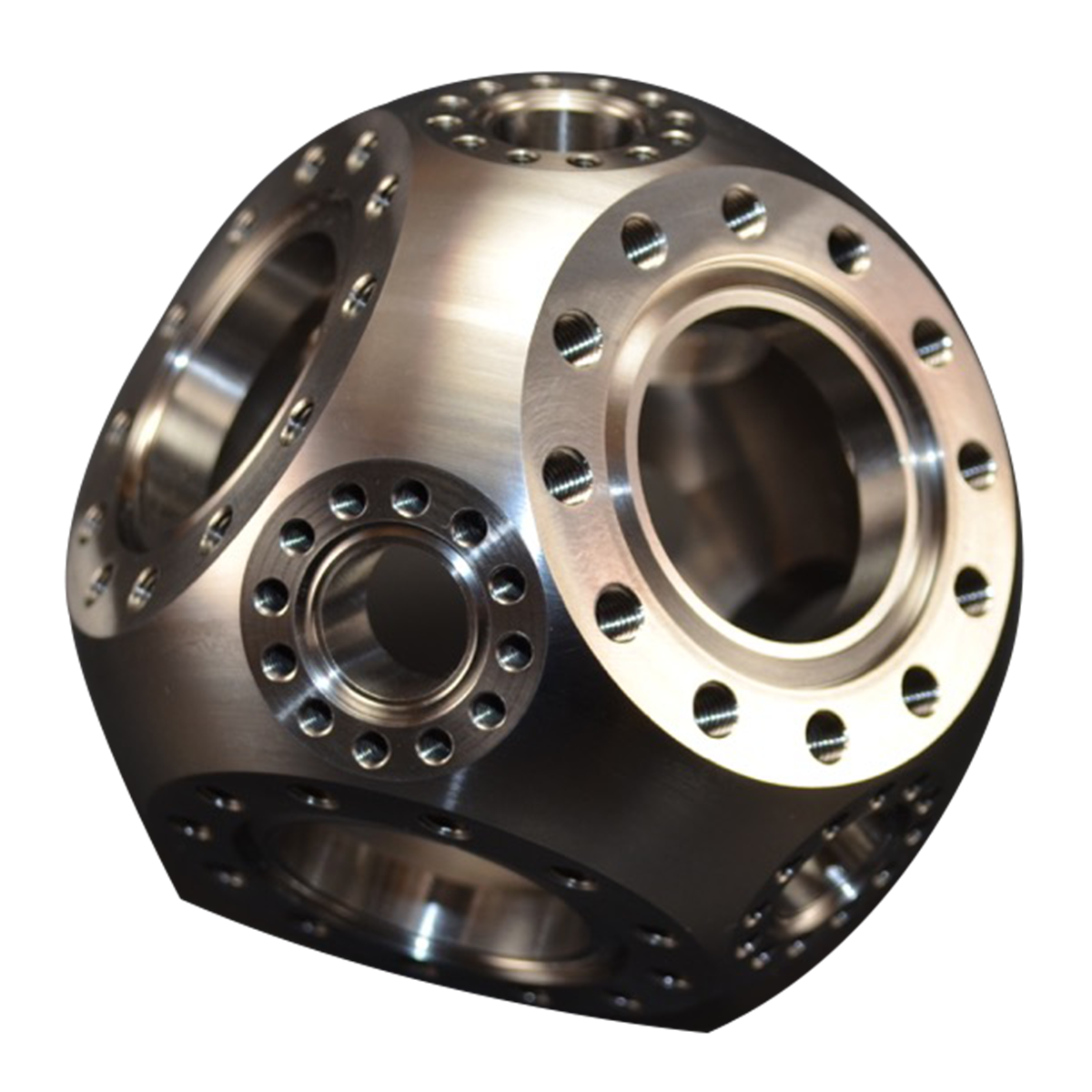

  • UHV titanium spherical cube chamber featuring multiple mini flanges and 2.75

    Slide title

    Write your caption here
    Button

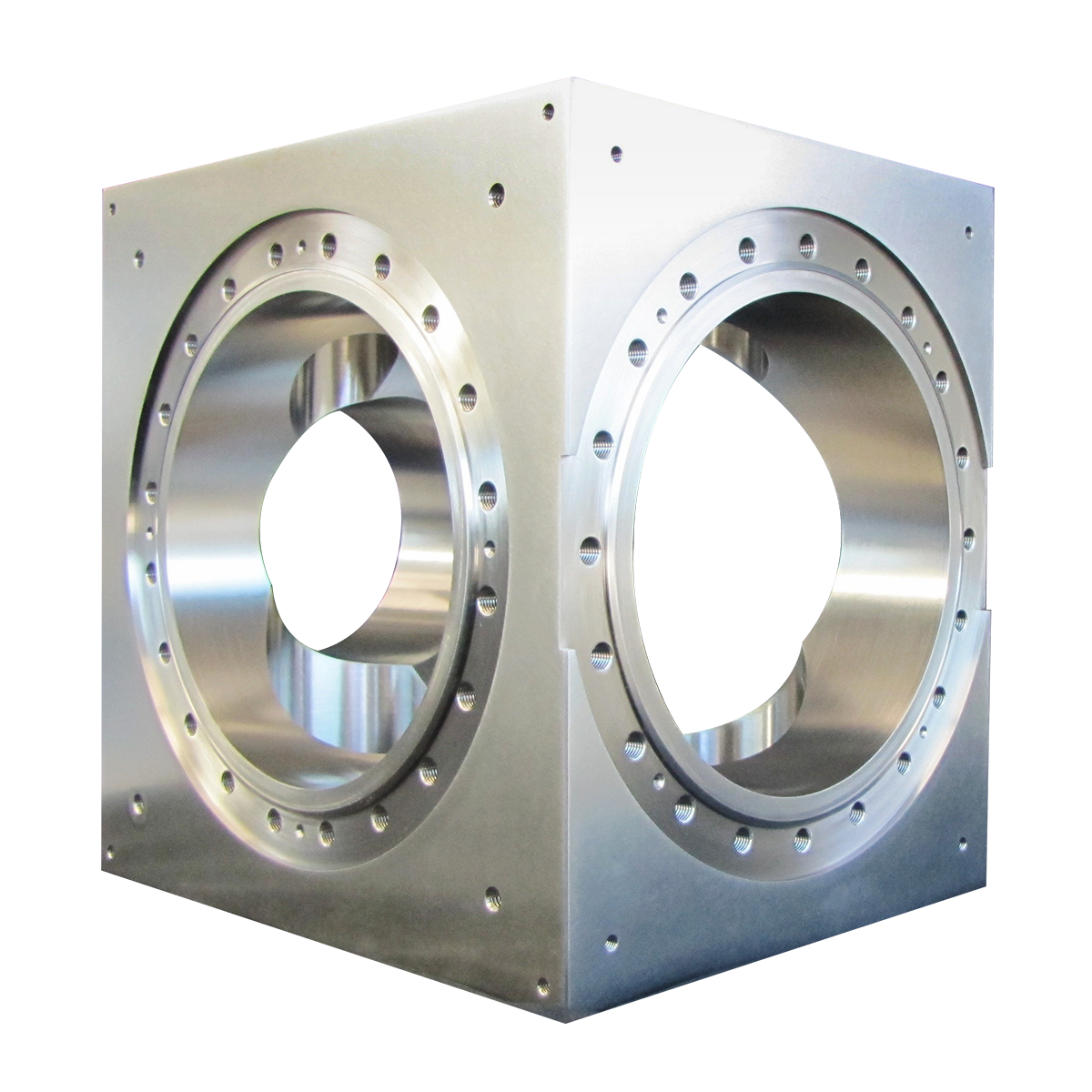

  • Titanium 10

    Slide title

    Write your caption here
    Button

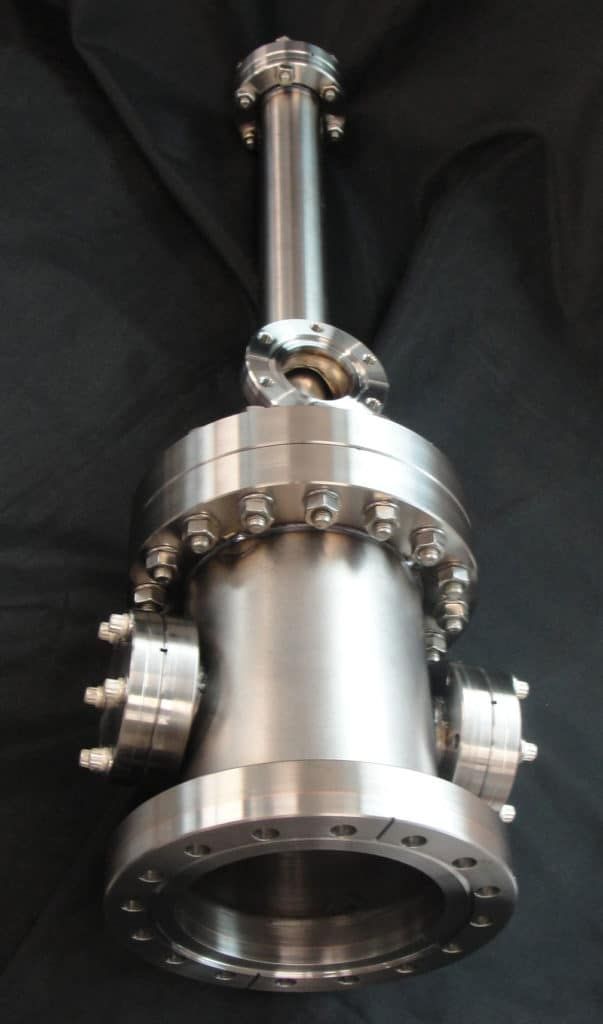

  • Four inch titanium cross chamber with 6

    Slide title

    Write your caption here
    Button
  • Aluminum vacuum chamber with thin-walled, black anodized x-ray optic section and rotatable ConFlat® (CF) bimetal flanges.

    Slide title

    Write your caption here
    Button

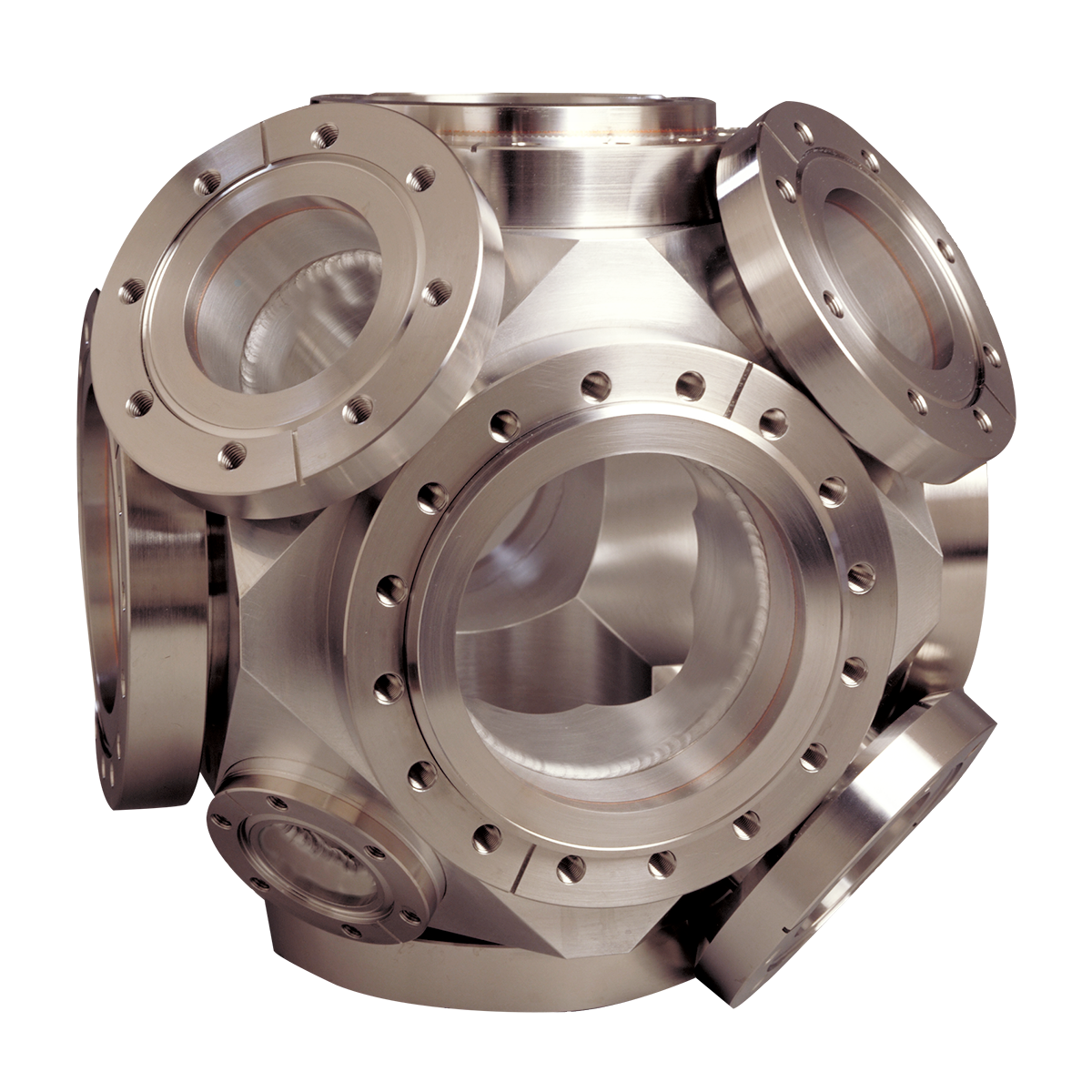

  • A 12-sided, titanium vacuum chamber with conflat flanges on each side.

    Slide title

    Write your caption here
    Button

Atlas titanium vacuum chambers offer superb vacuum performance with very low hydrogen permeation rates and can even be utilized as vacuum pumps due to the gettering properties of this metal.


Titanium chambers can be taken into the 1×10-13 Torr range and beyond, so they are often chosen for extreme high vacuum (XHV) accelerator applications or for applications where performance is the primary concern.


Due to titanium’s cost and the slow machining speeds, it is typically used only when XHV is required or when the low magnetic permeability of titanium is a key advantage over stainless chambers.


Applications that may require XHV:

• X-ray Lithography

• Particle Physics

• Accelerators

• Cryogenics

• Non-Magnetic Environments

Request Custom Quote
  • A titanium cylinder with flanges on both ends, commonly called a full nipple.

    Slide title

    Write your caption here
    Button

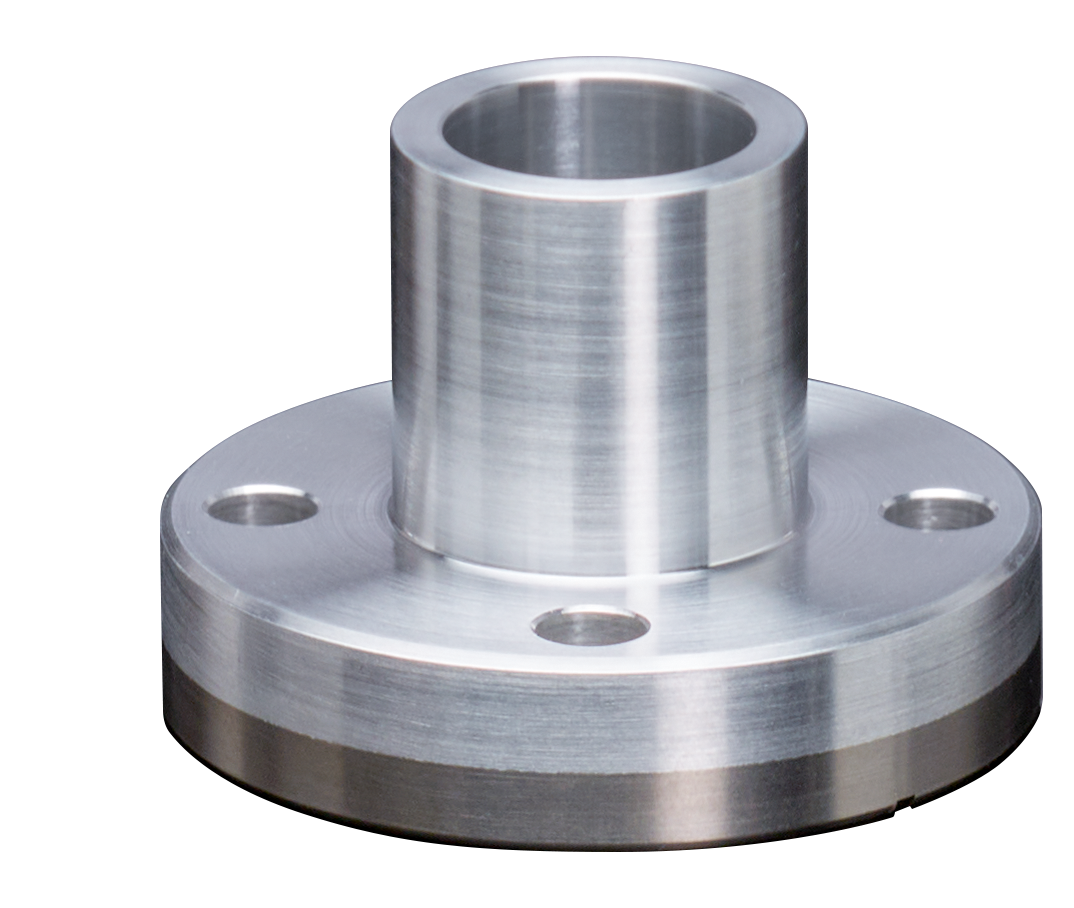

  • Bimetal aluminum-stainless weld neck flange features a wide diameter base with a narrower diameter neck for welding.

    Slide title

    Write your caption here
    Button

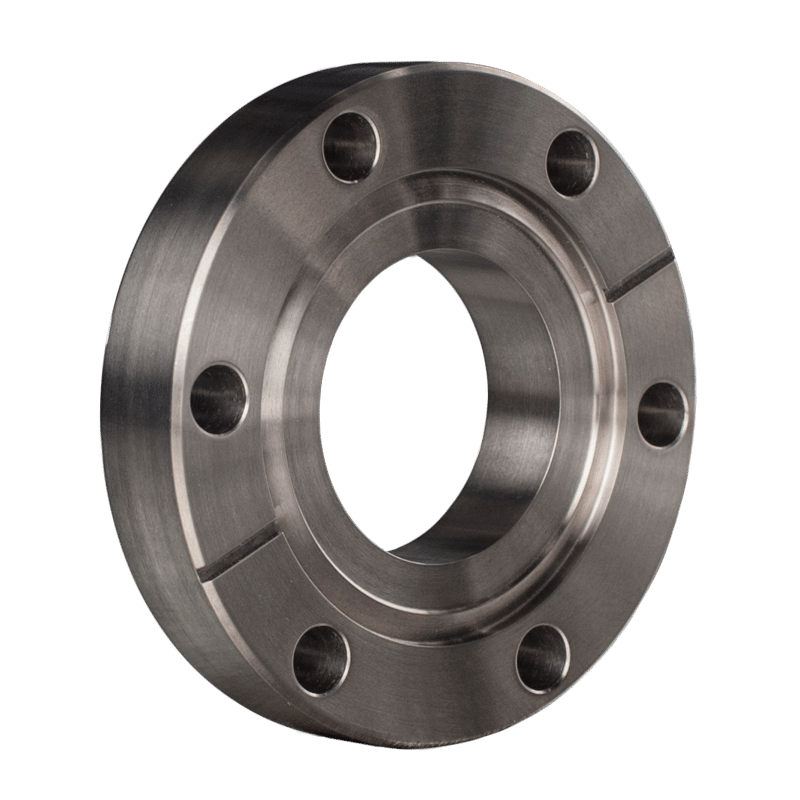

  • A close up of a titanium ConFlat flush mount flange on a white background.

    Slide title

    Write your caption here
    Button
  • A custom bimetal titanium/stainless transition ring for coupling tubes.

    Slide title

    Write your caption here
    Button

Atlas also manufactures a wide range of titanium vacuum components and accessory hardware to complement our titanium vacuum chamber products. Components include:


  • Bimetallic titanium/stainless CF flanges
  • Wire-seal flanges
  • Foil window flanges
  • All titanium nipples and half nipples


Bimetal flanges offer a stainless steel sealing face on a titanium body. The stainless face matches the coefficient of thermal expansion of other stainless flanges while the titanium body is welded to the titanium chamber. For completely non-magnetic or stainless-steel-free applications, Atlas titanium flanges or bimetallic aluminum/titanium CF Flanges can be used. All-titanium nipples and half nipples are also available.

Atlas titanium vacuum chamber production techniques, chamber configurations, or combinations thereof, employed by Atlas include:

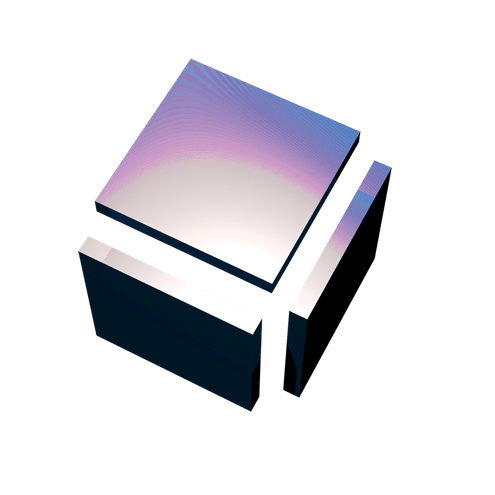

Rendering of titanium cube shaped chamber.
A rendering showing the potential for a chamber to be made out of extruded titanium.

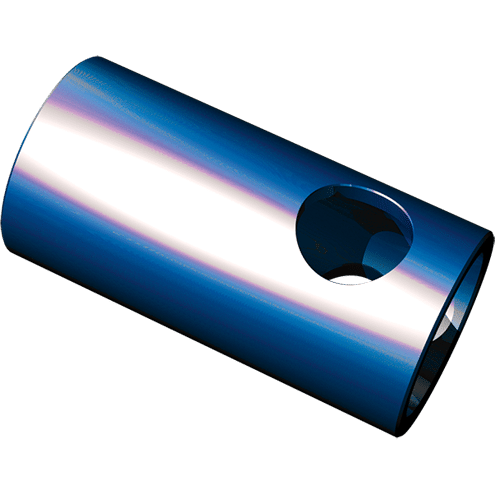

A rendering showing the potential for a chamber to be made out of a titanium tube.

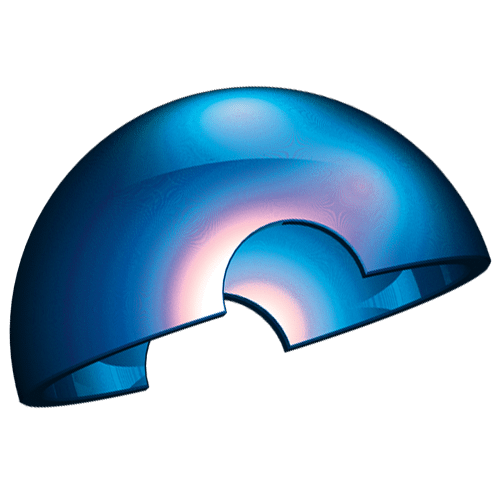

A rendering showing the potential for a spherical chamber to be made out of titanium.

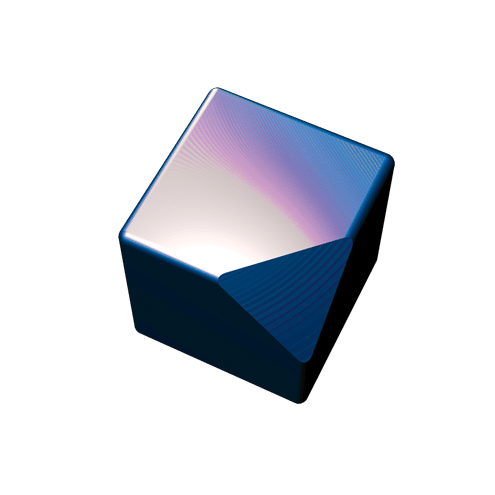

A rendering showing the potential for a chamber to be manufactured (hogged out) from a solid block of material.

HOW CAN WE ASSIST IN YOUR PRODUCT DEVELOPMENT NEEDS?

From our first custom aluminum vacuum chamber, to our recent niobium to stainless steel fittings for satellite delivery rockets, to our standard bimetal and titanium flanges and fittings, Atlas Technologies has been the solution of choice for mission critical projects around the world. Whether you have a napkin sketch, a full-fledged design, or just need a handful of our US-manufactured bimetal products, we can help.
